Mobile extended shelter customized by us

Views:0     Author:Site Editor     Publish Time: 2020-07-22      Origin:Site

Mobile extended shelter customized by us


The square shelter is organically combined with various sturdy materials to form a convenient and movable whole. The square shelter is similar with a container. According to different needs, corresponding structural design is carried out inside the compartment, and different equipment and devices are installed, which will have specific functions.

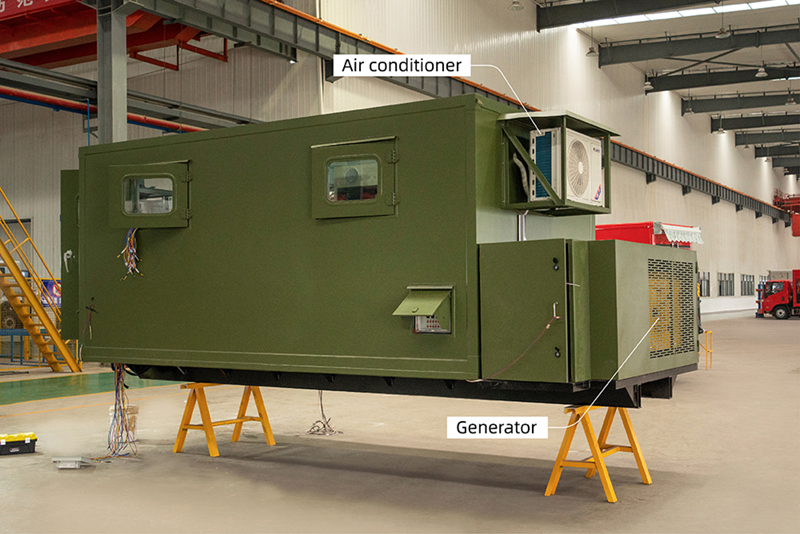

3fa391bbd9163ce0c69a89c6b97dc46

Multi-function square shelter

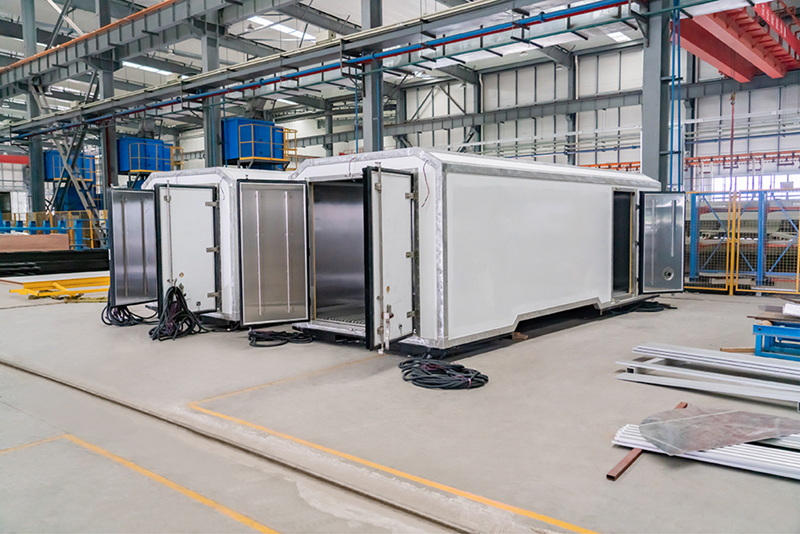

From traditional basic square shelter, ordinary box trucks, to refrigerated box, to prisoner trucks customized according to customer requirements, mobile police cabins, movable instrument test cabins, etc., we have made repeated attempts and improvements. The following are some examples of traditional square compartment made by us.

77ca663005195e7e167a1a03fc13fea

Dual temperature refrigerated compartment

9fb22acfc3b7d1028848387bf1cc936

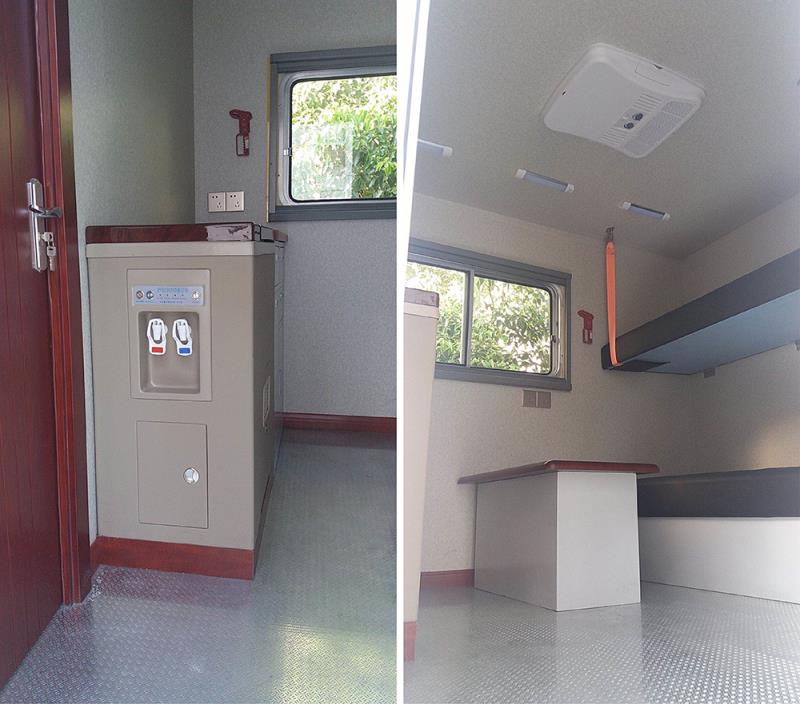

Rest compartment

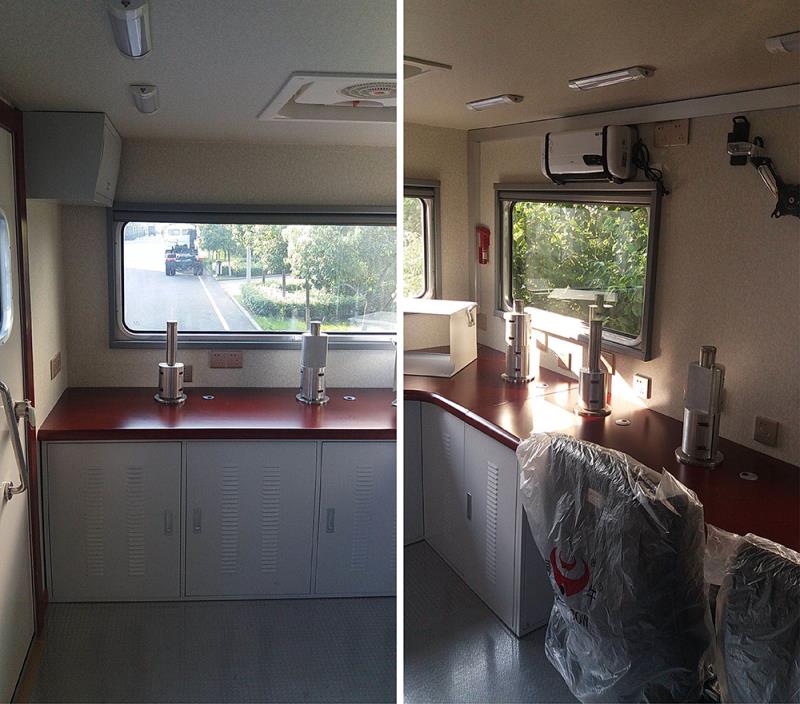

d56ea63cec3a0cc5f96d05ddb984623

Working compartment

The application area of square shelter is expanding with the continuous development of the technology. However, due to the limitation of the width of the transportation vehicle, the use space provided inside the compartment is quite narrow, which limits the use function of the compartment.


Therefore, we have cooperated with scientific research institutions to develop an expansion mechanism for movable and expandable square shelter, which solves the problems of narrow internal space, poor practicability & difficulty of transport. Since they are restricted by the width of transport vehicles in the current technology.

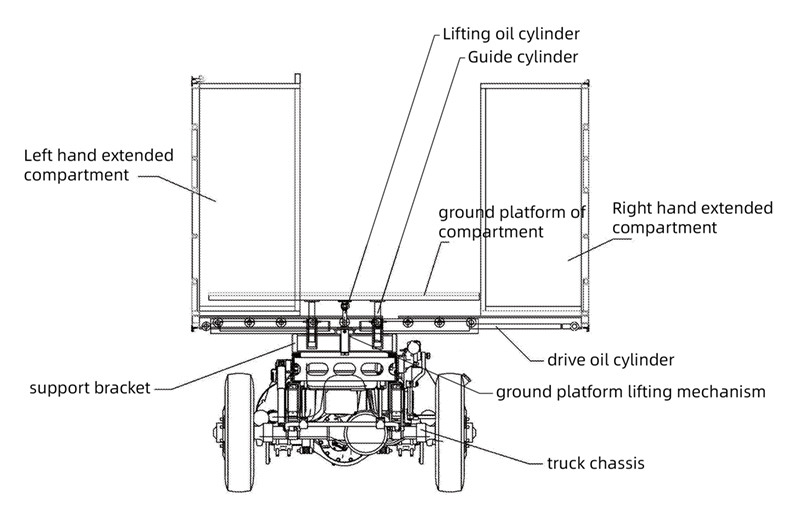

移动方舱车厢扩展机构英文-04

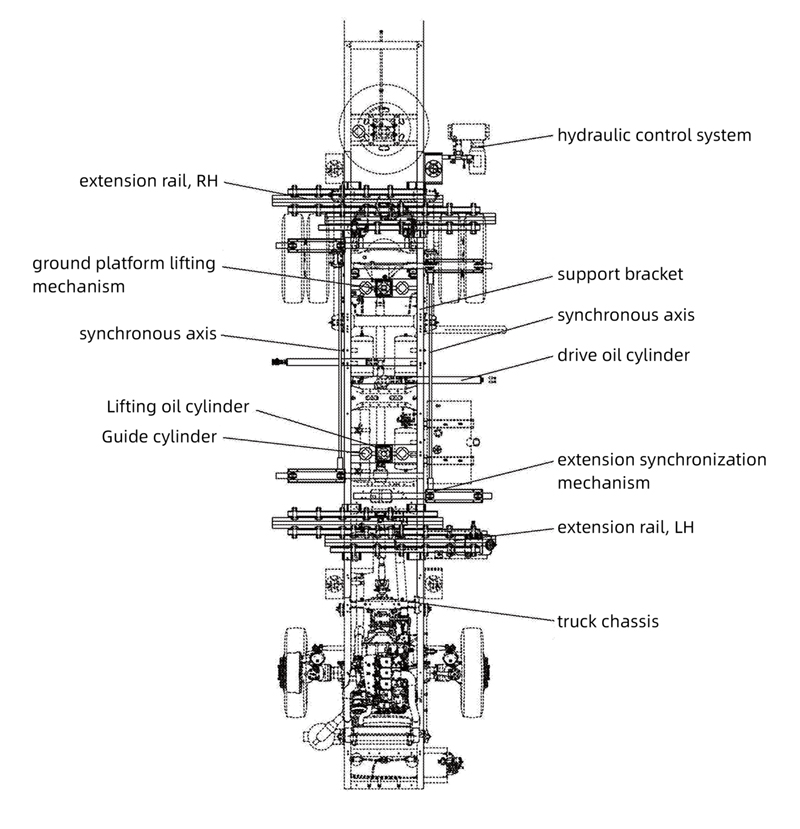

The square shelter is generally rectangular, and expansion compartments are provided on the left and right sides of the compartment, and an expansion mechanism is provided at the bottom of the expansion shelter. The expansion mechanism drives the expansion compartment to expand and contract in the left and right directions of the cabin.

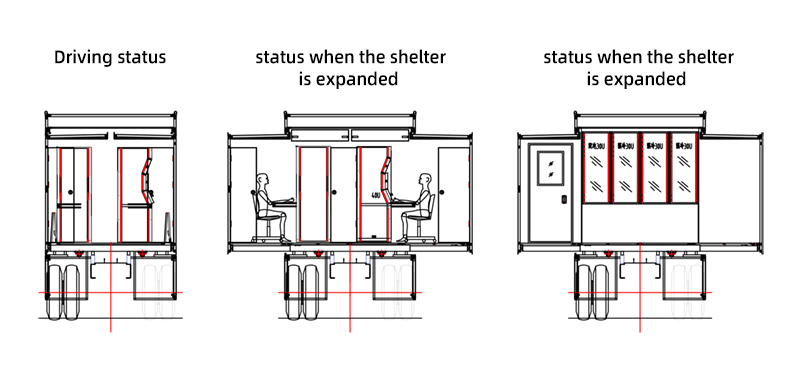

status


移动方舱车厢扩展机构英文-03

Rear view


移动方舱车厢扩展机构英文-02

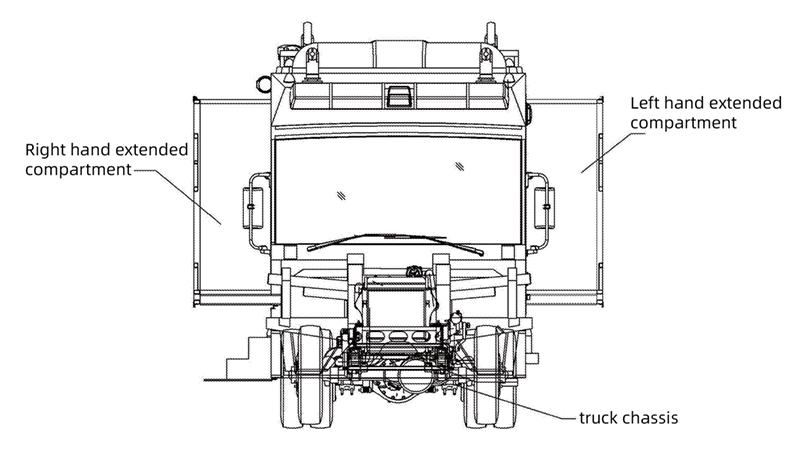

Front view

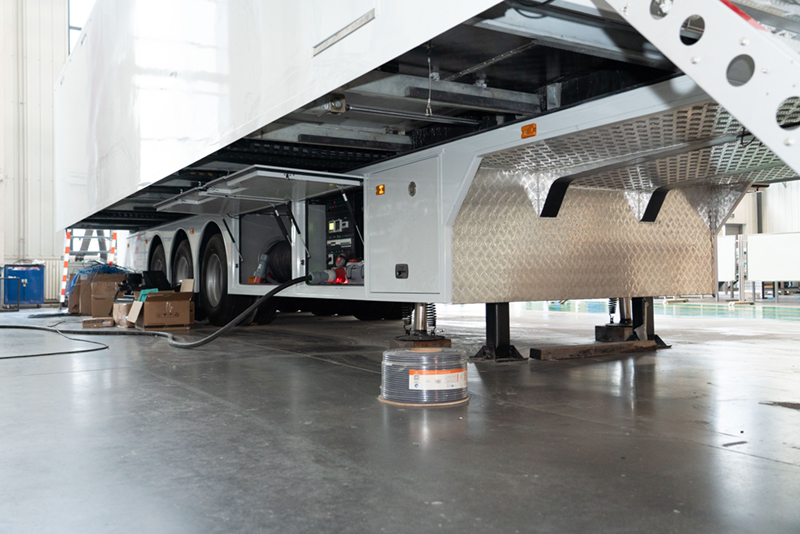

_RB03851

Extension Mechanism left


_RB03854

Extension mechanism right


The expansion compartment on the left and right sides are gathered through the expansion mechanism, and when they are gathered, they are flush with the left and right sides of the cabin body, so that the compartment body is narrowed to the width of the standard transportation vehicle. And it will not hinder the line of sight during transportation and it also improves the Safety and convenience and maneuverability of transportation. It allows mobile square compartment can be widely used in command systems, communications, medical care, and logistics support.

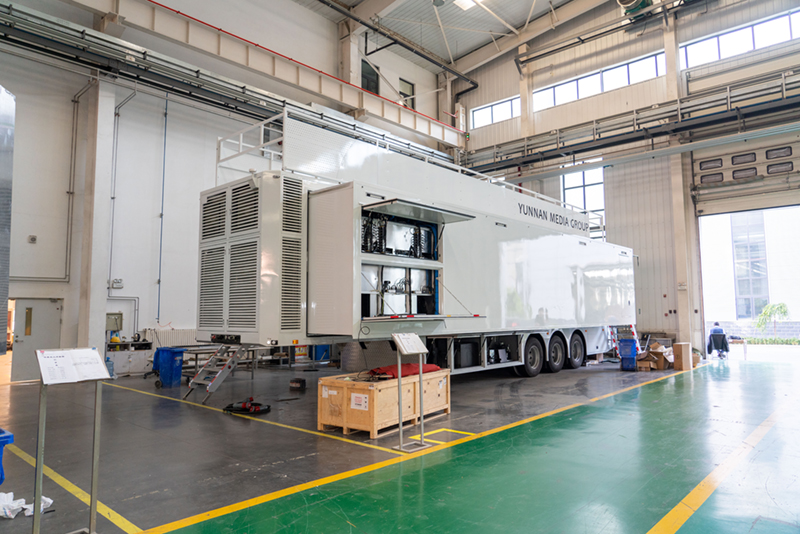

_RB03858

More information inside extended shelter

_RB03830

compartment Inside 1


_RB03835

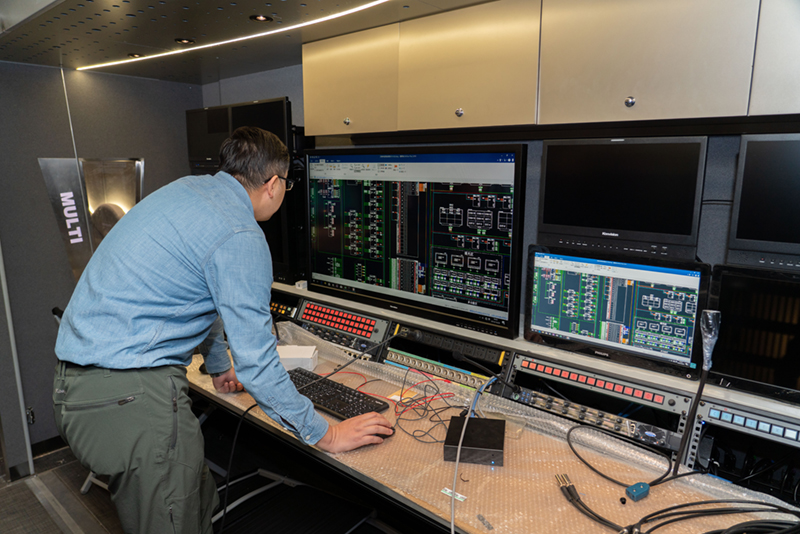

Compartment inside 2

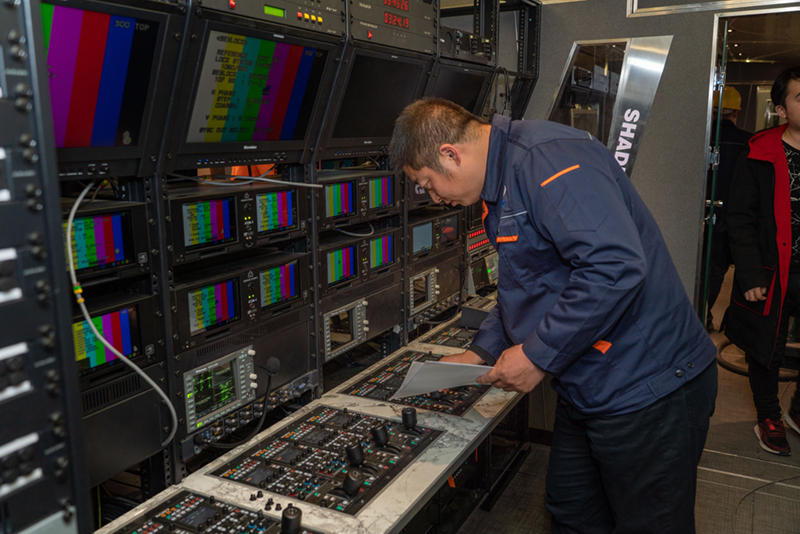

_RB03836

Compartment inside 3


_RB03845

Separate compartment inside 4


More refitting case for reference:

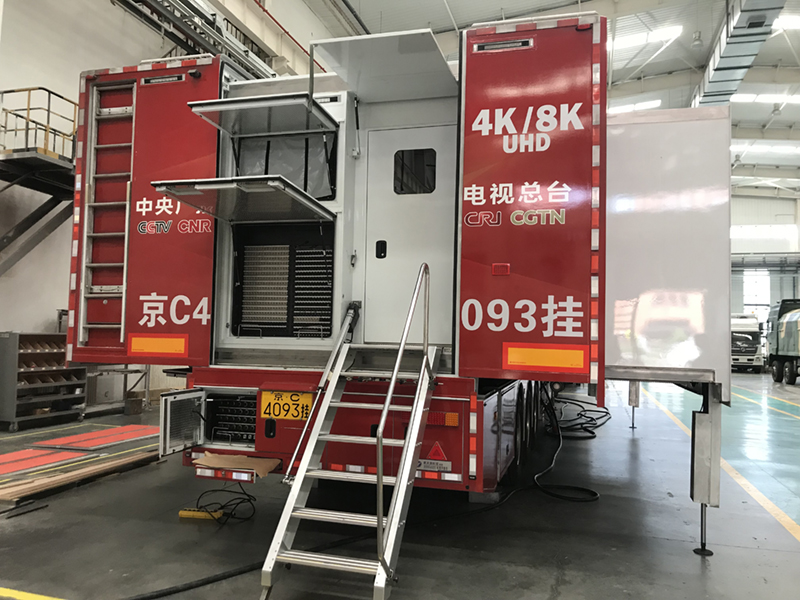

5a1af8188b1194a24bc42acb5899562

CCTV Life TV vehicle


9da6904486426d917d9180372bbd44d

5G Communication vehicle

2d73aa1758ad3fdb9650fc849c71419

Tecent & SMT


2405e283d86fd6798b43b4d79d190f0More refiting case
