Detailed Technical Guide And Application Manual for Weichai 6WH17 Marine Engine

1. Engine Core Performance Analysis

The Weichai 6WH17C1000-5 marine diesel enginefeatures an inline six-cylinder design with a displacement of 17 litres, capable of steadily producing 1000 horsepower (736 kW) at 1500 rpm. The engine is equipped with a high-pressure common rail fuel system, with an injection pressure of 1800 bar, ensuring thorough fuel atomisation and improving combustion efficiency. Notably, its maximum torque reaches 4200 N·m at 1300-1400 rpm, making it particularly suitable for operations requiring high traction, such as tugboat towing and engineering vessel operations.

2. Detailed Explanation of the Professional Cooling System

This engine uses a closed-loop freshwater cooling system equipped with a separate seawater heat exchanger. Compared with the traditional direct seawater cooling method, this design has significant advantages: first, the engine's core components always operate within the optimal temperature range (85-95℃), avoiding thermal stress caused by temperature fluctuations; second, the internal cooling circuit does not come into contact with seawater, fundamentally preventing salt crystallisation blockages and corrosion. Practical application data shows that engines with this cooling system can operate stably for over 20,000 hours between major overhauls.

Weichai 6WH17C1000-5 Water Cooled

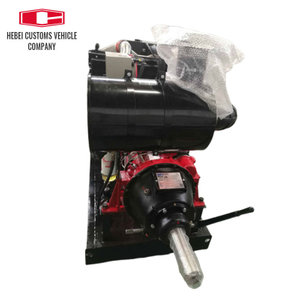

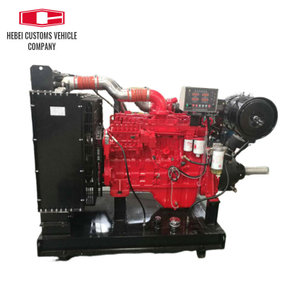

6CTA8.3 Industrial Water Pump

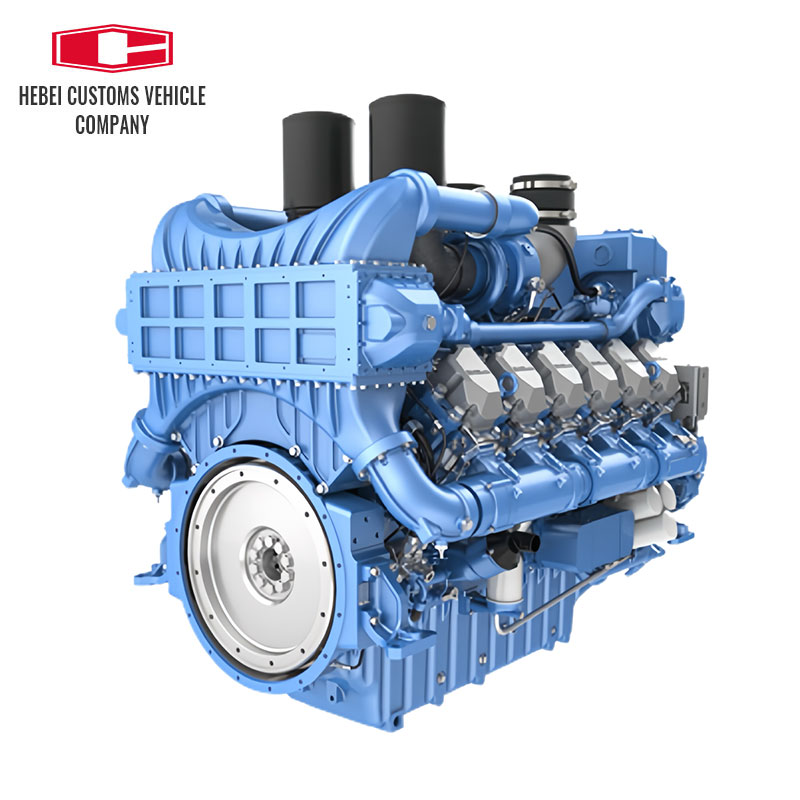

12M33C1400-18 Marine Diesel Engine

3. Structural design and maintenance characteristics

From a structural design perspective, the 6WH17 engine demonstrates many practical considerations:

Its compact design results in overall dimensions of only 2150×980×1450mm, saving about 15% of installation space compared to products of the same power level.

It features a modular design, with the fuel filter, oil filter and coolant pump all arranged on the same side of the engine, allowing maintenance from a single side.

Key joint surfaces use fluororubber seals, improving oil resistance by 50% and effectively preventing interface leakage.

The crankcase reinforcement ribs are arranged in a grid pattern, keeping vibration amplitude below 7.5mm/s, enhancing equipment comfort.

4. Analysis of practical application scenarios

In multiple real cases, this engine has shown outstanding adaptability:

 On harbour tugboats, it drives large-capacity fire pumps via the PTO interface to meet fire safety standards.

 On coastal engineering vessels, it powers the hydraulic pump set through the power take-off, providing stable power for the anchor winch.

 On ocean-going fishing vessels, its partial load characteristics are excellent, with fuel consumption rate still maintained at an excellent level of 195g/kWh at 40% load.

 The specially designed anti-salt spray corrosion coating allows the engine to maintain good condition even in the high temperature and high humidity of Southeast Asian waters.

5. Comprehensive Technical Support Services

We provide customers with complete technical support solutions:

Provides 3D models in IGES and STEP formats that can be directly imported into ship design softwareEquipped with a professional installation guidance team to provide on-site guidance for key processes such as base welding and axis alignmentEstablishes a rapid response mechanism, ensuring that commonly used parts are shipped within 48 hoursRegularly provides equipment operation data analysis services to help customers optimise maintenance plans

6. Typical application configuration recommendations

Based on different operational requirements, we recommend the following configuration plans:

For port operation tugs, it is recommended to use elastic coupling connections with low-speed, high-torque propellers; for passenger ferries that require frequent start and stop, a hydraulic coupling is recommended to effectively reduce transmission system impact; for continuously operating generator sets, the cooling system configuration needs to be specially enhanced, and it is recommended to add an auxiliary cooling pump.

We suggest that shipowners consider not only the initial purchase cost when selecting an engine but also the operational benefits over the entire lifecycle. According to actual operating data, the 6WH17 engine, through optimized fuel efficiency and longer maintenance intervals, can help shipowners save approximately 15% of total operating costs over five years.

For specific configuration plans or technical consultation, our engineering team can provide personalised selection advice based on your vessel parameters and operational characteristics.
