1. Introduction: The decisive impact of fuel pumps on engine performance
A fuel pump is the heart of a marine diesel engine’s fuel‑delivery system. It determines the pressure and flow rate at which fuel reaches the high‑pressure rail, thereby influencing combustion efficiency, emissions and overall fuel consumption. For the SC11CB220G2B1 (162 kW / 220 HP) six‑cylinder water‑cooled engine, the pump’s mechanical efficiency is roughly 0.78, meaning about 22 % of the input power is lost as internal friction – a loss that appears directly in the fuel‑burn rate.

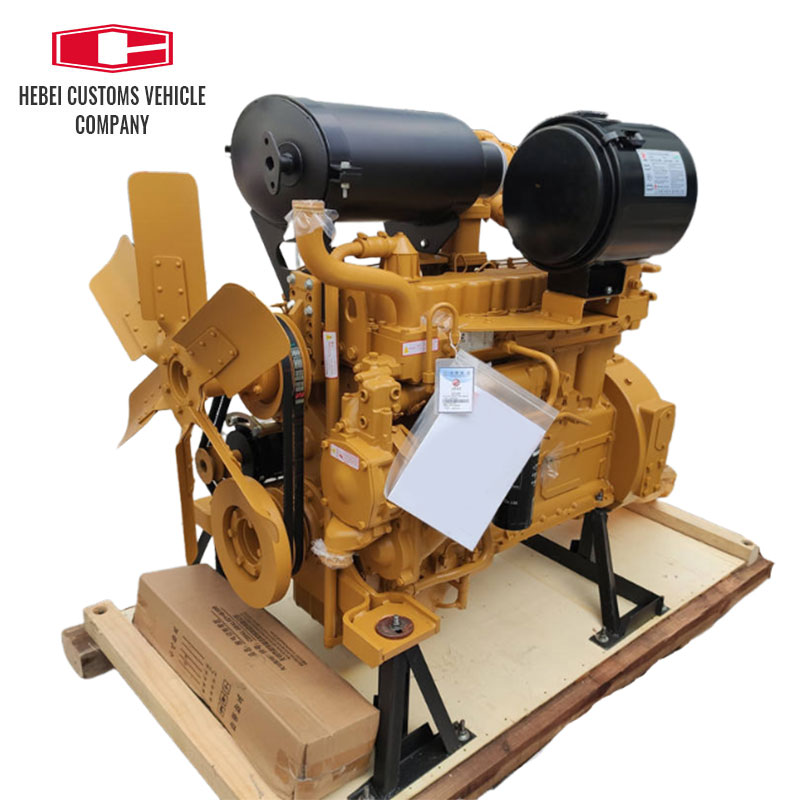

Image 1 – SC11CB220G2B1 engine overview
2. Overview of fuel‑pump types
Type | Drive method | Typical construction | Suitable power range | Main advantages / disadvantages |
Mechanical pump (gear / piston) | Directly driven by crankshaft or cam | Two‑stage gear pump, piston pump | 50 kW – 800 kW | Proven reliability, low cost; friction losses rise with speed |

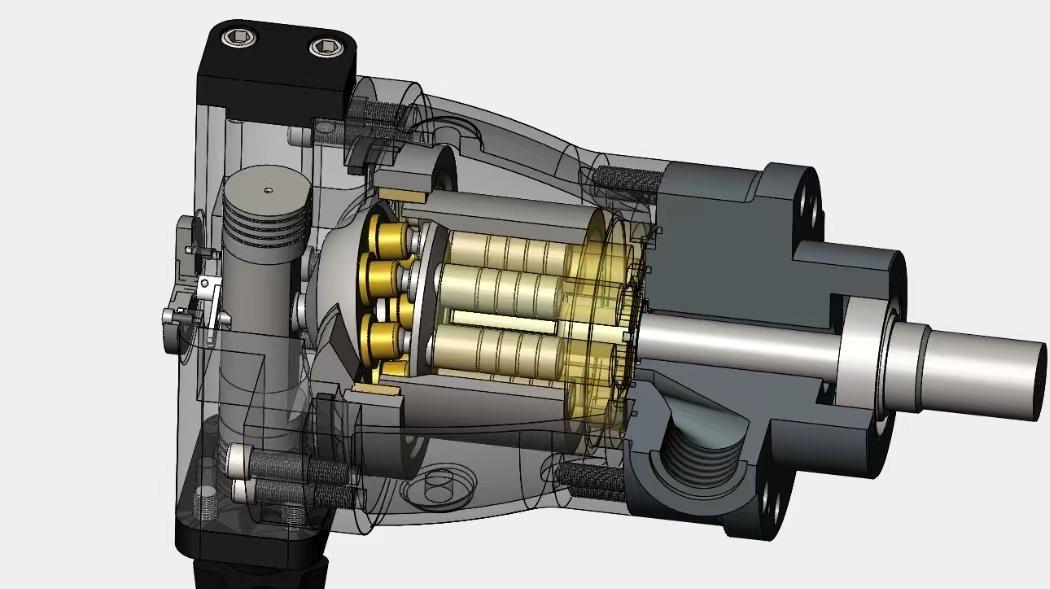

Electric pump | Independent electric motor (often variable‑frequency) | Axial‑flow or centrifugal pump | 30 kW – 600 kW | Eliminates mechanical linkage losses; can be shut down at low load, saving 2 %‑3 % fuel |
Electronically‑controlled common‑rail pump (CRDI) | Mechanical pump plus ECU regulation | High‑pressure pump with electronic control unit | 150 kW – 2 MW | Very high pressure and precise injection; complex and expensive |
3. Quantified efficiency and fuel‑consumption comparison
Metric | Mechanical (gear) pump | Electric (VFD) pump |
Mechanical efficiency | 0.78 (≈ 22 % loss) | 0.92 (≈ 8 % loss) |
Fuel consumption per kWh | 210 g/kWh (measured on SC11CB220G2B1) | 205 g/kWh (estimated) |
Overall fuel‑economy improvement | — | ≈ 2.3 % (electric‑pump case) |
Maintenance cost | Gear and seal replacement every 5 000 h | Motor bearing and controller replacement |
4. Decision‑making criteria and practical guidance
1. Engine power and speed
Below 200 kW, a gear pump is usually preferred for its compactness and lower purchase price.
Between 200 kW and 800 kW, an electric pump becomes attractive, especially for vessels that operate at highly variable loads (e.g., fishing or workboats).
2. Operating environment
Seawater corrosion: opt for stainless‑steel or zinc‑plated pump bodies.
High temperature / high load: the variable‑frequency control of an electric pump helps keep the pump temperature down.
3. Maintenance convenience
Mechanical pumps typically require gear and seal replacement every 5 000 h; a stock of two sets of spare parts is advisable.
Electric pumps need spare motor bearings and a controller; one set is usually sufficient.
4. Cost‑benefit analysis
Initial outlay: mechanical pumps are roughly 8 %‑10 % cheaper than electric equivalents.
Operational savings: an electric pump can save 2 %‑3 % of fuel for a 1 MW·h‑class vessel. Pay‑back is typically achieved within 2‑3 years.
5. Maintenance and replacement checklist
Inspection item | Frequency | Key indicator | Recommended action |
Pump exterior condition | Every voyage | Presence of rust or oil leaks | Clean, apply anti‑corrosion coating |
Seal integrity | Every 2 000 h | Hardening or cracking | Replace flat seal (B00001275) |
Gear clearance | Every 5 000 h | Clearance ≤ 0.02 mm | Adjust or replace gears |
Motor temperature (electric pump) | Continuous monitoring | > 80 °C alarm | Inspect cooling circuit |
Control signal (electric pump) | Monthly | Voltage/frequency within spec | Re‑calibrate ECU |
6. Conclusion
Choosing the right fuel pump is pivotal for improving the fuel economy of marine diesel engines. By contrasting mechanical and electric pumps, presenting authentic component data , you can reduce fuel costs, extend engine life.
