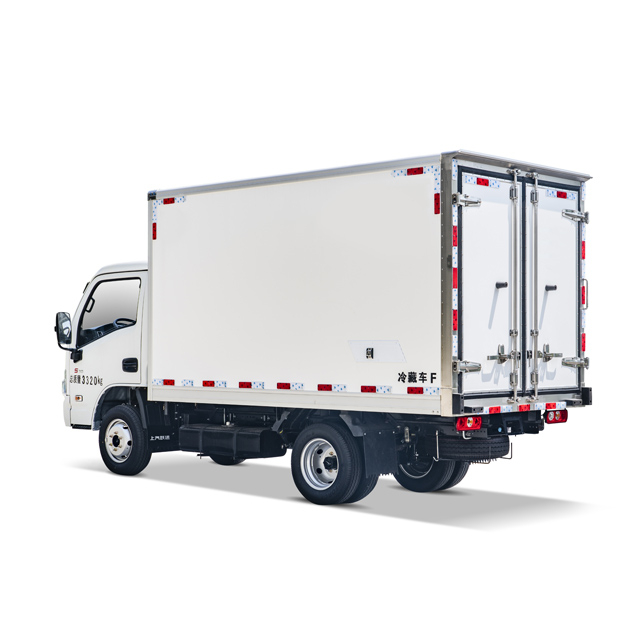

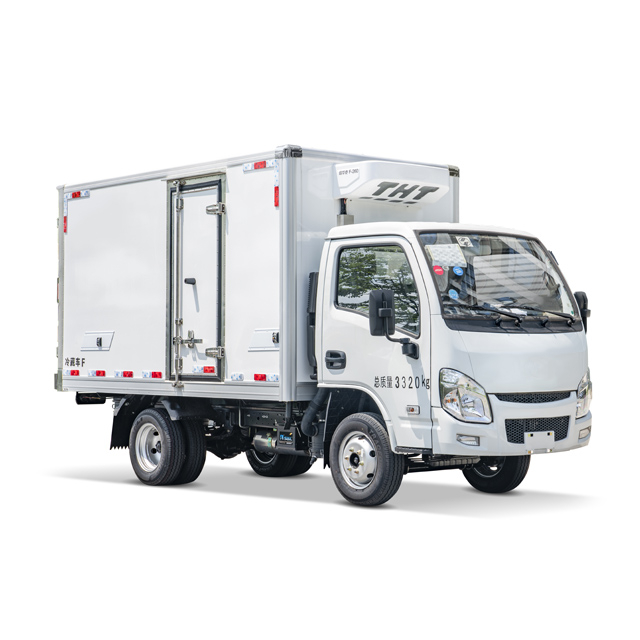

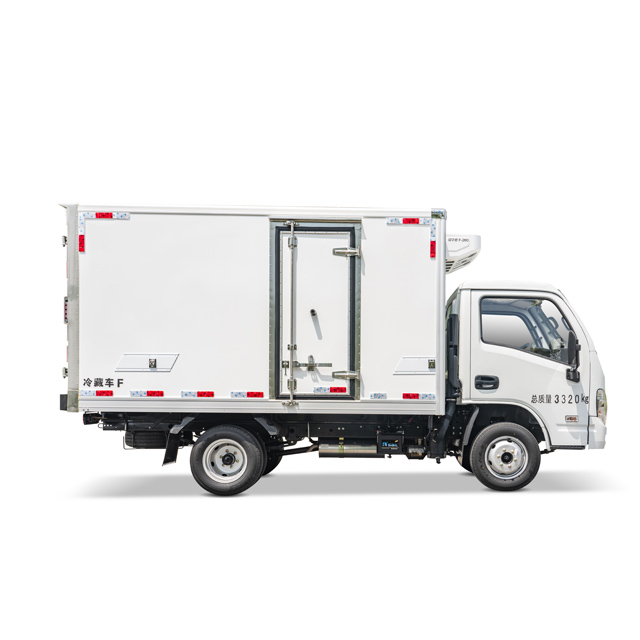

4X2 MAXUS 1.5 Ton Refrigerated truck

A refrigerated vehicle is a special vehicle equipped with a refrigeration unit and a polyurethane insulated cargo van. And they are widely used for the transportation of frozen food (refrigerated vehicle ), dairy products (milk transport vehicle), vegetables and fruits (fresh goods transport vehicle), vaccine drugs (vaccine transport vehicle).
Quantity:
  • MD1042LCA
  • MAXUS
  • 8704210000
  • 1910 cc
  • 96 hp
  • Diesel
  • 8.5 CBM
  • 3495 kg

I.  Rear cargo box is of good insulation performance and high transportation capacity

The box is combined of 5 big board : Ceiling, front wall, side walls &  rear door 。And manufacturing process of the insulated boards of the walls  of the cargo van is large board bonding. The heat insulating layer is rigid polyurethane foam with a density of 42 kg/m3 (thickness 80-100 mm), No harmful ingredients is contained inside the heat insulating boards. The sheet formed by the bonding of the large plate has a smooth surface and beautiful appearance, and the sheet also has sufficient rigidity and strength; The sheet also has good performance indexes in terms of heat conduction, airtightness and water tightness.

small box

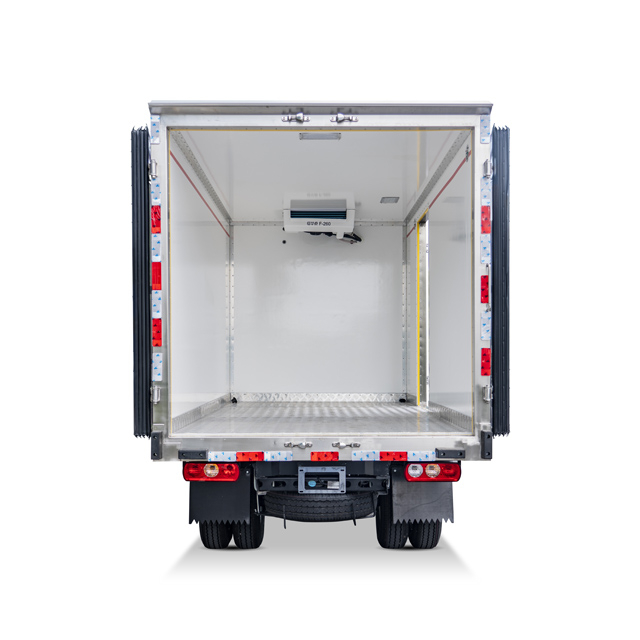

Company’s mature general structure of cargo van is adopted for freezer van assembling too. And the inner and outer corners between the sheets are all covered with angled profiles to enhance the strength. And the sheet frame is welded by a carbon steel rectangular tube. Cold light source LED lighting device and drainage hole & with airtight performance are provided inside the cargo van. And the internal panel of the bottom plate is a bamboo rubber board, which is firm and impact resistant and suitable for cargo loading and unloading.

小冷藏车标注_画板 1

The rear door frame has a flat door frame structure,which is made of 2.5 mm thick, 3 -class stainless steel material. And the rear door opening mechanism is also of stainless steel material; Sealing strip is added around the rear door to strengthen the sealing performance, the door gap adjustment and the optimized mechanism make the opening much more light & easy.

1


II . Cargo box is of high strength & long serving life

The material of the board surface is available in FRP, stainless steel, aluminum alloy, etc. And the cargo box has the advantages of light weight, high thermal insulation coefficient, strong impact resistance, no leakage, etc., it has good corrosion resistance and aging resistance under the medium such as atmosphere, water, acid and alkali and salt. By optimizing the design, the center of mass is lowered and the effective volume is increased.

2


III .  Light weight design underframe:

The underframe of freezer box is specially designed with high-strength all-aluminum constructure. The curb weight of refrigerated truck with aluminum underframe is 15% less than that with channel-steel underframe. And the loading capacity will be increased to meet the customer's load requirements under the same gross vehicle weight. And this design already obtained a national patent.

小冷藏车标注2_画板 1



Chassis Info


Cab TypeSingle   Cabin
Tilted/
Width1545mm
No. of Seats2
Engine     Type D19TCIE10
EMISSION LIM.EURO IV
Displacement(cc) 1910
Max Power(kw/rpm) 70/3600
Max Torque(N.m/rpm)190/1800~3400
Transmission

Type MT78
Speed Rario 1st:4.746 2nd: 2.591 3rd:1.501 4th:1 5th:0.77 R:4.301
Final drive ratio4.875
Tire Type185R14LT
Dimension
      (mm)
Overall   Size(mm) (L*W*H)     5185×1735×2060/2105
Wheelbase2650
Rear body size(mm) (L*W*H)
/
Min. Ground Clearance≥150
Front&rear tread1316/1223
Weight
  (kg)
Kerb Weight/(CVW)(kg)1560
G.V.W. (kg)2500
Brake

Serving Brake TypeHydraulic Brake
Parking Brake TypeCentral Drum Brake
Exhaust Assistant Brake/
ABS
Front Disc Brake
A/CO
Power Steering
Power Window
Central Lock
Remote Control
Safety belt reminding/
Cruise control+Multifunction steering wheel /
7 Inch Touch Screen /
10 Inch Touch Screen /
Wind DeflectorO
self-adjusting brake O
Reverse Radar /
Reversing image /
Voltage12V
Fuel Tank Volume 40L
Post-processing technology route Common rail  High pressure +EGR+双DOC
Optional
 Body   ColorBlue   O
Yellow /
Red /
Front Disc Brake/
Cruise control+Multifunction steering wheel /
Wind DeflectorO
A/CO
self-adjusting brake O
Strengthen Leaf SpringO
Top VentilationO
Electrothermal rearview mirror /
Driving automatic latch-

● :  Standard      ○: Optional      /:   Not   Available
