Both water-cooled and oil-cooled turbochargers core function is to boost power and save fuel for construction machinery diesel engines, and both use engine oil for lubrication (reducing friction of turbo shafts and bearings to avoid rapid wear in harsh construction site conditions). The only difference is the cooling method—this is the key that determines which working condition the turbocharger is suitable for. No need to remember complex principles, just read the straightforward summary.
（1）Oil-Cooled Turbochargers: Simple, Durable, for Short-Term Operation
Cooling is only achieved through engine oil, which flows through the turbo bearing housing to absorb heat and then returns to the engine oil sump for cooling. The overall pipeline is few and the structure is simple.
This design is resistant to vibration and gravel impact on construction sites, and damaged parts can be replaced quickly on-site. It is suitable for small and medium-sized construction machinery operating for 2-4 hours a day, such as Komatsu PC200-7 and small Caterpillar excavators for township construction.
（2）Water-Cooled Turbochargers: Better Heat Dissipation, for Long-Term Heavy Load
Adopt oil + coolant dual cooling; oil is for lubrication, and coolant runs through an independent pipeline in the turbo bearing housing for auxiliary cooling. After the engine is turned off, the coolant can still continue to cool the turbocharger through thermal convection to avoid high-temperature carbon deposits.
Heat dissipation capacity is far superior to oil-cooled models, and it can withstand continuous heavy loads in mines and ports. It is suitable for large equipment operating for more than 8 hours a day, such as Volvo EC210D in African mines and 6CTA engine excavators for port loading and unloading.
Comparison Item | Oil-Cooled Turbocharger | Water-Cooled Turbocharger |
Cooling System | Single oil cooling circuit | Dual oil + coolant cooling circuit |
Installation Difficulty | Simple, few pipelines, replaceable on-site | Slightly complex, coolant pipelines required, professional installation recommended |
Core Advantages | Vibration and impact resistant, simple maintenance, low replacement cost | Excellent heat dissipation, long turbo life, withstands continuous heavy loads |
Suitable Working Scenarios | Short-term construction (township construction, small-scale excavation) | Long-term heavy load (mine excavation, port loading/unloading, road construction) |

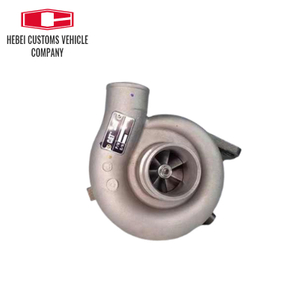

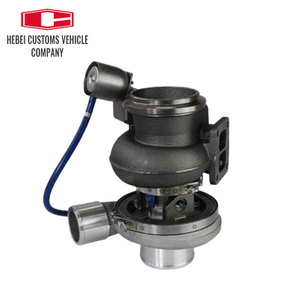

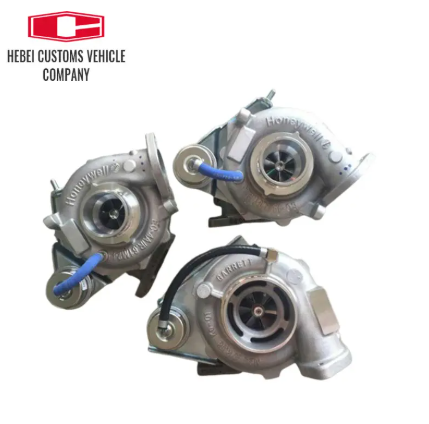

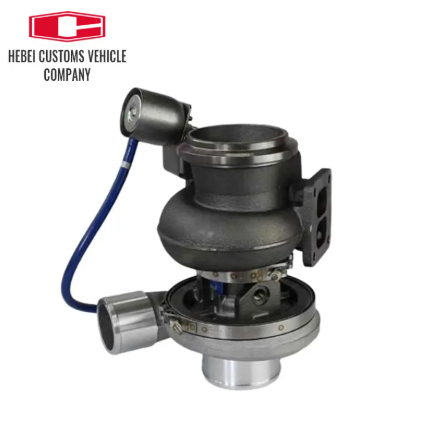

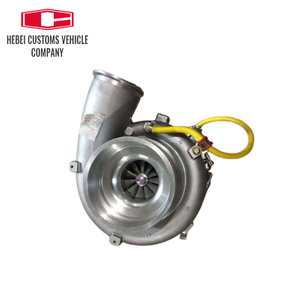

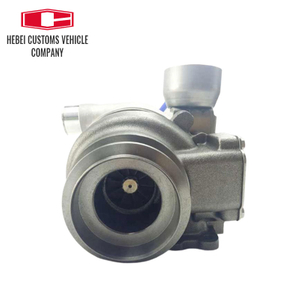

Our Core Turbo Models | 287-0049 (Cat 320D), 315-9810 (Cat 320D) | 246-8142 (6CTA), VOE21092586 (Volvo EC200D/210D) |
Essential Matching Sensors | Oil Pressure Sensor 0281002315 (Volvo EC360) | Coolant Temperature Sensor 2547-9038 (HYUNDAI DH220-5) + the same Oil Pressure Sensor |
Matching ECU Controller | Basic model VOE14594697 (Volvo EC210B) | Advanced model 14640102 (Volvo EC200D, with turbo optimization program) |
Routine Maintenance Difficulty | Low, only regular oil quality checks required | Medium, oil and coolant systems need to be checked simultaneously |
The core of turbocharger selection is not that "water-cooled is better" or "oil-cooled is better", but to match the working hours and scenarios of your construction machinery. The following are selection suggestions based on feedback from global construction site customers, with matching Common Rail Fuel Injectors and Hydraulic Pump Parts attached to make the engine work in synergy with the turbocharger and hydraulic system without power waste.
（1）Choose Oil-Cooled Turbocharger: If Your Equipment Operates for Short-Term Light/Medium Load
Such as local construction, small-scale farmland excavation, and the equipment works no more than 4 hours a day. Prioritize an oil-cooled turbocharger for high cost performance and easy maintenance.
Our in-stock matching parts: Pair with Common Rail Fuel Injector 6754-11-3011 (Komatsu PC200-8)
（2）Choose Water-Cooled Turbocharger: If Your Equipment Operates for Long-Term Heavy Load
Such as African mine excavation, European port loading/unloading, cross-regional long-distance road construction, and the equipment works more than 8 hours a day. A water-cooled turbocharger is a must to reduce high-temperature failures.
Our in-stock matching parts: Pair with Coolant Temperature Sensor 2547-9038 (HYUNDAI DH220-5) + ECU Controller 14640102 (Volvo EC200D) + Common Rail Fuel Injector 0445120236 (Komatsu PC300-8); the ECU will automatically adjust coolant flow and fuel injection volume according to sensor data, keeping the turbocharger working at the optimal temperature at all times.
Many on-site turbochargers fail prematurely, not due to the quality of the turbocharger itself, but because the matching sensors/controllers are not selected correctly, leading to loss of control of turbocharger cooling and lubrication. The following are essential matching parts for water-cooled/oil-cooled turbochargers, all core products of our company, compatible with mainstream models with no compatibility issues.
1. ECU Controller (The "Brain" of the Turbocharger )
Core Function: Adjusts turbo boost pressure and engine fuel injection volume according to sensor data; water-cooled turbochargers can also optimize coolant flow to maximize turbocharger efficiency.
Our In-Stock Models: Basic model VOE14594697 (Volvo EC210B, for oil-cooled turbochargers), advanced model 14640102 (Volvo EC200D, for water-cooled turbochargers, preloaded with original factory parameters, no manual programming required).
2. Common Rail Fuel Injector (The "Power Partner" of the Turbocharger)
Core Function: Precisely supplies oil to the engine. Insufficient injector precision will lead to incomplete combustion, which not only reduces turbocharging effect, but also increases fuel consumption and even causes turbocharger carbon deposits.
Our In-Stock Models: 6754-11-3011/0445120231 (Komatsu PC200-8/210-8), 0445120236 (Komatsu PC300-8/350-8), with an injection precision of ±3%, compatible with low-sulfur diesel in Europe and America, suitable for different markets worldwide.
Oil-Cooled Turbocharger Maintenance
1. Check the Oil Pressure Sensor reading every week; replace the sensor immediately if the reading is unstable
2. Use only API CK-4 grade diesel engine oil; poor-quality oil will cause coking in the turbocharger oil pipeline, leading to heat dissipation failure;
3. Do not step on the accelerator hard after cold start; idle for 2-3 minutes until the oil pressure rises before operation.
Water-Cooled Turbocharger Maintenance
1. Inspect the coolant pipeline every month for leakage and cracking; pipeline damage is the number one cause of overheating in water-cooled turbochargers;
2. Calibrate the Coolant Temperature Sensor every 6 months; inaccurate data will lead to incorrect ECU adjustment and high-temperature carbon deposits on the turbocharger;
3. Do not turn off the engine directly after long-term operation; idle for 1 minute before shutting down to allow the coolant to continue cooling the turbocharger;
4. Use a 50/50 ethylene glycol coolant mixture, suitable for extreme weather such as high temperatures in Africa and low temperatures in Europe.
For construction machinery turbocharger selection, choose oil-cooled for short-term operation and water-cooled for long-term heavy load—the core is to match the working condition. For a durable turbocharger, it must be paired with accurate sensors and ECU controllers, which are indispensable.
Hebei Customs Vehicle is your one-stop supplier for all turbocharger and matching parts, with in-stock models for Cat, Volvo, Komatsu, Hyundai and more top construction machinery brands.Visit our Turbocharger Product to browse all models, or contact our team for a custom part bundle quote (we respond within 24 hours!).
