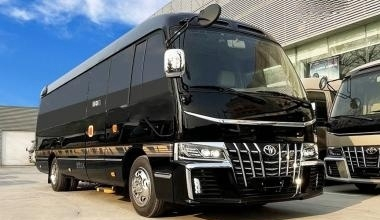

Luxury 9 Seats Black Edition Toyota Coaster Bus

The comprehensive matching of economy, luxury and vehicle performance makes COASTER an attractive solution to many of today's traffic and environmental problems. She incorporated more enjoyment and efficiency into the handling of small passenger cars because we has always been people-oriented.
  • MD6701


  • 8702109210

  • 2892

  • 152 hp

  • Diesel

  • 6500 kg

I. Classic streamlined appearance with modern and stylish design, elegant atmosphere. Every detail of its design reflects the perfect combination of shape and function. Besides, it chooses High-temperature baking paint, paint water is full, paint surface is hard and lasting.


II. High-strength gold-steel closed-loop belt bodystrengthened crash beam, brazing process are adopted at key positions. After 28 process including water washing, acid washing, alkaline washing, phosphating, electrophoresis, high temperature drying, etc., the body will not go rust for more than 8 years.


closed-loop belt body

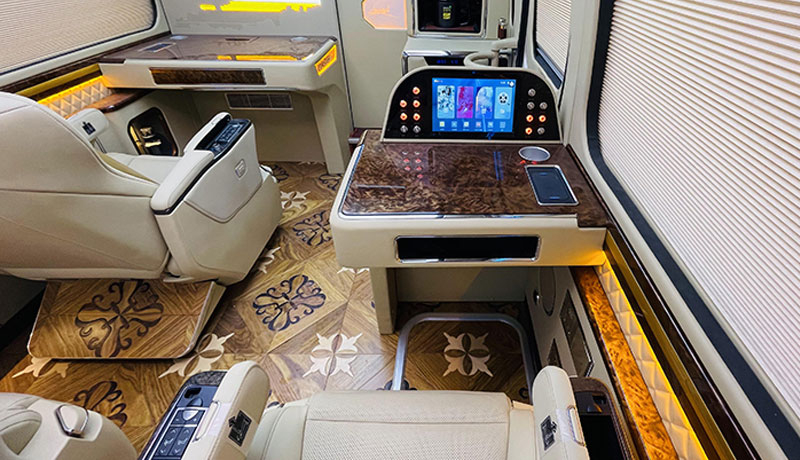

Peach wood imitation center console is quite luxurious & atmosphere. Large & comfort driving space,various controls are within reach, and the design is user-friendly

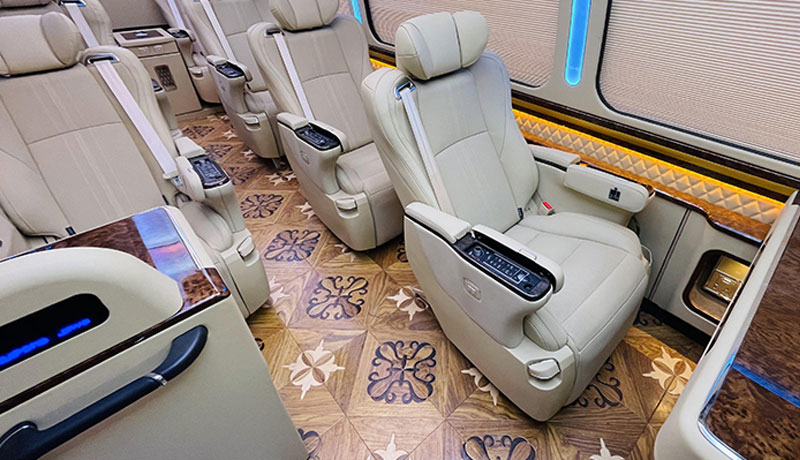

Besides, perfect combination of luxurious leather seats with the wide side windows make it more spacious,brighter and more comfortable.


Interior view, Rear


Interior view, Front

IV,  Safe & stable Isuzu technology chassis

Isuzu's technical passenger vehicle chassis is adopted, which has been proven to be mature and stable, and high in safety by millions of trucks. The Isuzu N series reinforced dual-circuit hydraulic brake system is also adopted, which shortens the braking distance and smooth short and the braking. Also front independent suspension is also available on this model for comfort increase.

微信图片_20200317082543ISUZU Technology chassis  indepdent

Independent suspension option

The front axle can be equipped with an independent suspension system, components of the independent suspension system are from the same Toyota supply system, ensuring reliability and comfort.

V. Excellent power system

1, Power

JX4D30 engine adopts Honeywell VGT turbocharger which can meet the range of high and low rotation speed,  BOSCH common rail system is also adopted with a rejecting pressure up to 18000bar. Engine’s maximum torque of 375Nm could be achieved when the revolving speed ranges from 1500rpm to 2800rpm. Net max power is of 110kw/2800rpm,which greatly improves acceleration and operation performance.

2, Low fuel consumption and low emission:

 Optimization of combustion system to improves combustion efficiency and emission level;  matching design are made through stable cylinder-inside nozzle ,combustion chamber calculation and tests. Powerful EGR cooler and inter-cooler in state IV stage are adopted to improve intake conditions;  higher compression ratio is also settled ; intake manifold is also been optimized by CFD to improve intake distribution. Furthermore, oil consumption is lowered through lower friction by optimizing each key friction pair (e.g. valve rocker driving mechanism with roller). Measures mentioned above have been taken to balance energy saving and emission reduction indexes to reach the lowest fuel consumption of engine( leading 205g/kwh.)


Top view, JX4D30 engine


Side view,JX4D30 engine

3,  Intelligent & Low noise

Forging crankshaft, double-support reinforced cylinder block, fractured connecting rod technology, and pistons with inner-cooling oil duct are all adopted to make sure the engine is of good reliability when it reaches the Maximum power and torque. So this engine can be of  better durability compared with original JX493(4JB1) engine.

 Silent chain and gapless gear are adopted on the front end to drive valve timing gear train, high pressure oil pump, oil pump and other accessories, thereby it can realize  high reliability of diesel engine and lower engine noise.


4,Classic high-end transmission, German quality Getrag transmission is choosen to match the engine, which perfectly transmitting engine power with excellent performance like light handling, smooth gear change and durability and low noise at high speed.
