MD5070ZYSS
STANDARD
8705909990
Diesel
8 CBM

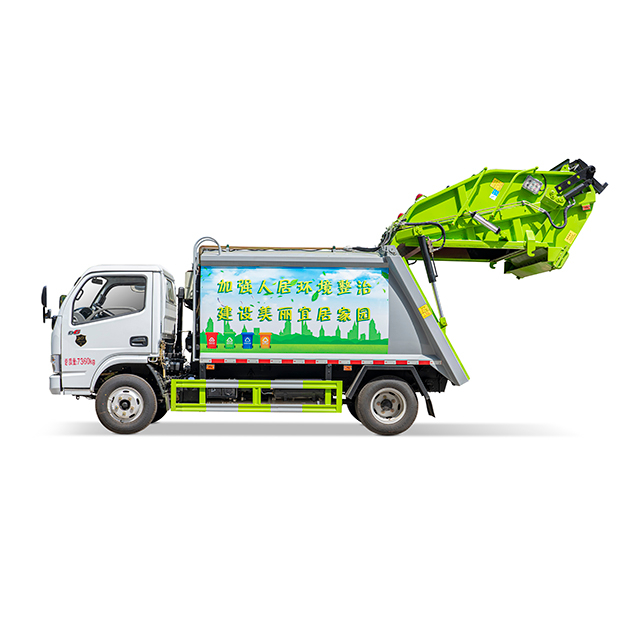

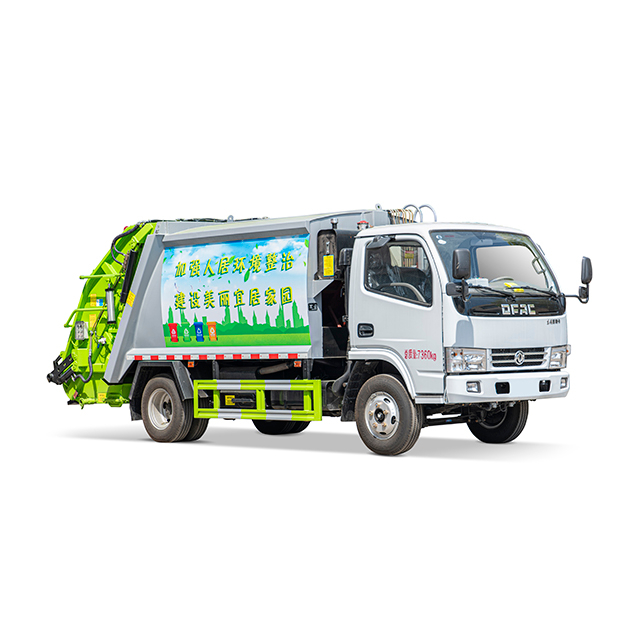

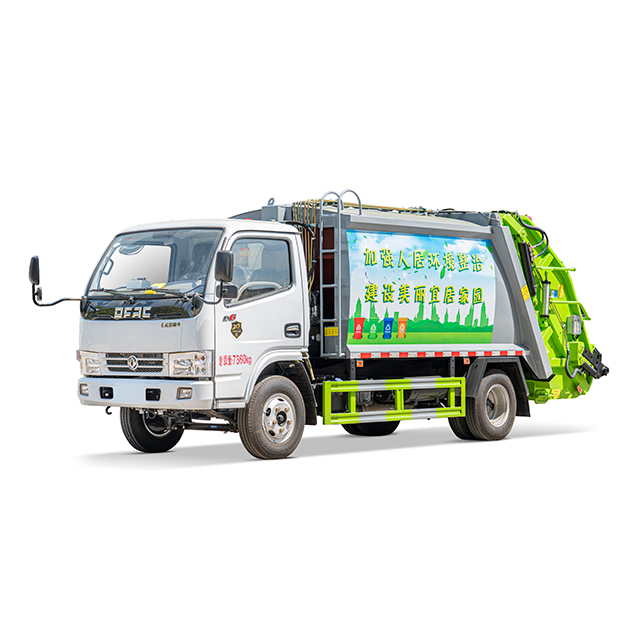

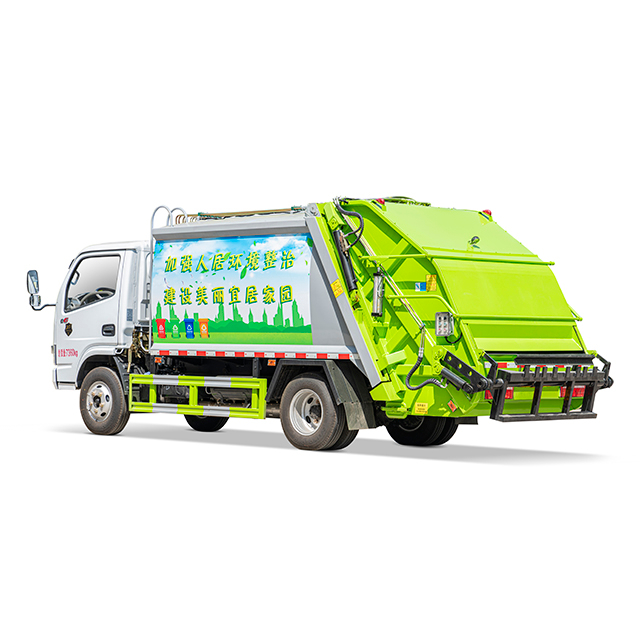

This garbage truck is fully enclosed special device for garbage collection and transportation and be of high efficiency and easy operation. And they are mainly used in city sanitation & household wastes disposal. Garbage collected inside the carriage will be compressed and discharged automatically, sewage during compression and transportation will be collected by drain tank under the bottom, thus there will be no leakage and scatter. And secondary pollution is settled.
Features of rear compression garbage trucks
I. Sturb & durable garbage compartment
The rear carriage is made high strength Q345 manganese stee, the thickness is 3mm for side panel and 4 mm for bottom. And the bottom of the garbage carriage is specially strengthened, which is not easy to be get collapsed, deformed and wearing, and it can extend the service life of the product. Also the slider of the pushing shovel is made of high quality MC nylon,which is self-lubricating and highly wear resistant.
Strengthened bottoom of compartment | Pushing shovel inside compartment |
II. long service life
The garbage carriage are of acid, alkali, corrosion resistance, since it will be treated with electrophoresis. And it can work at least 8 to 10 years without going rusting.
III. High compression ratio and large loading capacity;
Pushing shovel with 3 section hydraulic cylinders is installed inside the tank, which can compress or push out the garbage already loaded. And its loading capacity is almost 2.5 times of those normal garbage trucks without compression mechanism .
IV. Automatic operation:
There are 2 operation mode options: computer control or manual operation.If it is of computer model, only driver himself can finish the whole process of loading or discharging. It not only reduces the labor intensity but also improves working environment of labors. Also this 2 operation model design greatly gurantees the utilization rate of vehicles.
V. Outstanding Sealing property:
The whole truck is hermetically sealed, self-compressed & self –dumped, sewage flow into drain tank at the bottom of garbage loader. Extra tank is also installed under the front bottom of garbage compartment too. These measures will guarantees zero-garbage & zero-water leakage during collecting& transportation. By this way, the secondary pollution problem is solved thoroughly.
VI. High safety peformance
Bidirectional balancing valve is adopted in the hydraulic system of lifting loader.This valve not only guarantees the smooth lowering of the loader, but also cuts off the direct connection between the lifting cylinder and the hydraulic
hose. In this case, the garbage loader will not fall suddenly even if the hydraulic hose bursts.
This garbage truck is fully enclosed special device for garbage collection and transportation and be of high efficiency and easy operation. And they are mainly used in city sanitation & household wastes disposal. Garbage collected inside the carriage will be compressed and discharged automatically, sewage during compression and transportation will be collected by drain tank under the bottom, thus there will be no leakage and scatter. And secondary pollution is settled.
Features of rear compression garbage trucks
I. Sturb & durable garbage compartment
The rear carriage is made high strength Q345 manganese stee, the thickness is 3mm for side panel and 4 mm for bottom. And the bottom of the garbage carriage is specially strengthened, which is not easy to be get collapsed, deformed and wearing, and it can extend the service life of the product. Also the slider of the pushing shovel is made of high quality MC nylon,which is self-lubricating and highly wear resistant.
Strengthened bottoom of compartment | Pushing shovel inside compartment |
II. long service life
The garbage carriage are of acid, alkali, corrosion resistance, since it will be treated with electrophoresis. And it can work at least 8 to 10 years without going rusting.
III. High compression ratio and large loading capacity;
Pushing shovel with 3 section hydraulic cylinders is installed inside the tank, which can compress or push out the garbage already loaded. And its loading capacity is almost 2.5 times of those normal garbage trucks without compression mechanism .
IV. Automatic operation:
There are 2 operation mode options: computer control or manual operation.If it is of computer model, only driver himself can finish the whole process of loading or discharging. It not only reduces the labor intensity but also improves working environment of labors. Also this 2 operation model design greatly gurantees the utilization rate of vehicles.
V. Outstanding Sealing property:
The whole truck is hermetically sealed, self-compressed & self –dumped, sewage flow into drain tank at the bottom of garbage loader. Extra tank is also installed under the front bottom of garbage compartment too. These measures will guarantees zero-garbage & zero-water leakage during collecting& transportation. By this way, the secondary pollution problem is solved thoroughly.
VI. High safety peformance
Bidirectional balancing valve is adopted in the hydraulic system of lifting loader.This valve not only guarantees the smooth lowering of the loader, but also cuts off the direct connection between the lifting cylinder and the hydraulic
hose. In this case, the garbage loader will not fall suddenly even if the hydraulic hose bursts.
