DFA row anti-collission buffer vehicle

The main function of anti-collision buffer vehicle is designed to provide comprehensive passive safety protection for road maintenance workers and equipment in the temporary lane closed section.

Quantity:
  • MD5160
  • SHAZHOU
  • 8705909990
  • 3900
  • 180 hp
  • Diesel
  • 4500 cc
  • 15800 kg

The main function of anti-collision buffer vehicle is designed to provide comprehensive passive safety protection for road maintenance workers and equipment in the temporary lane closed section. This product has the advantages of convenient operation, no interruption of traffic, flexible work, high efficiency, easy operation, high safety and reliability. And it is especially suitable for the construction of daily maintenance of expressway and municipal roads.

17989288-6a7305209c1d26e5

Main parts of the vehicle

I.  Anti-collision cushion

The anti-collision cushion adopts the new "TMA-US-100K" imported from VEDEGRO Netherlands. Its shell is made of light aluminum alloy plate. In the middle, aluminum alloy thin film honeycomb energy absorption material is filled. Total eight double-section curved aluminum tube structure are installed externally. When a collision occurs, the double-section curved aluminum tube will be the first to stress deformation, which absorb 2000P or huge impact energy from pickup trucks and higher speed cases under the 3-51K standard. When the energy overcomes the deformation rate of the aluminum tube, the aluminum tube bends inward, and then anti-collision cushion is supposed to continue to absorb the rest of the energy.

标注文件222-04

The aluminum alloy thin film honeycomb material adopted in the cushion will undergo controllable deformation so as to absorb collision energy effectively. The buffer module can automatically rise or fall. And it is locked in two positions:  When in the working mode, the module will be locked in the horizontal position; when in the driving mode, the module will be locked in the upright position to improve the driving maneuverability.

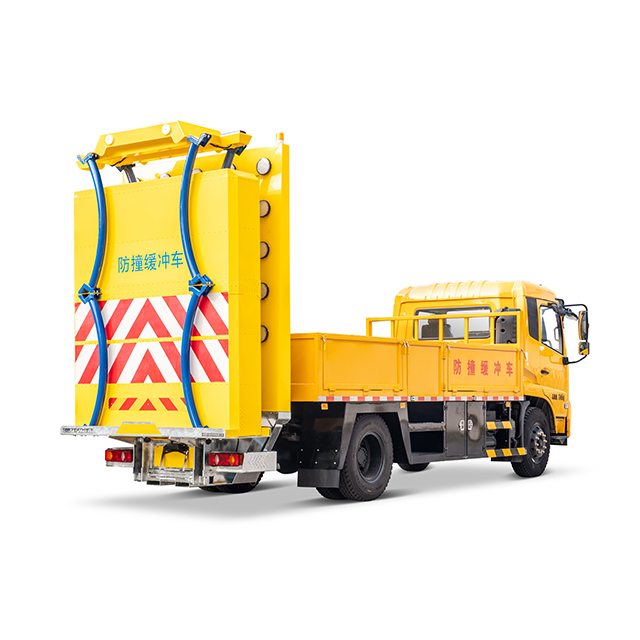

_RB01263

Driving Status

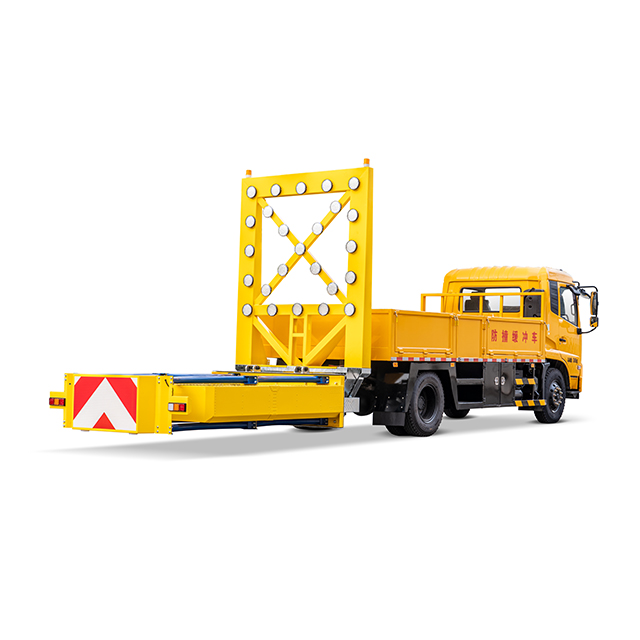

_RB01199

Working Status



II. Guide rack :

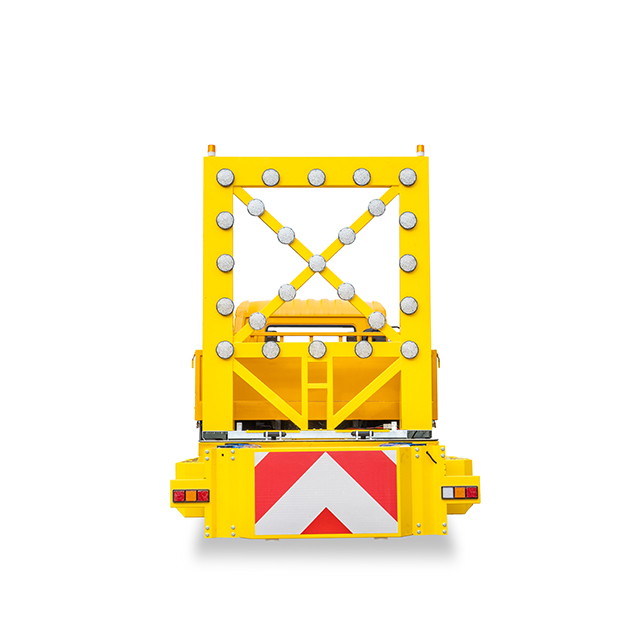

Large electronic arrow reflective signs is adopted. And it is fixed on the robust bracket structure of the anti-collision buffer device, and equipped with drive power supply and remote control. The arrow sign can guide the left, right or forbidden passages, which provides active safety guidance for road vehicles, minimizes the impact of construction on traffic flow, and ensures safety, effectively protect the construction personnel and equipment, also maximizes the safety of the people inside the anti-collision vehicle.

_RB01185副本

III. Chasis cargo box

The cargo box is welded with high quality profile steel and steel plates, which is firmly connected to the truck chassis.  Working platform and seats are set on both sides of the cargo box to facilitate the construction personnel to place and collect the safety bucket. And the staff can safely sit on the truck to carry out the work without getting off with risk.

7138c7f69609d31fddfb70eeb27e9a5

IV. Guide rack  & cushion controller

The guide rack control & anti-collision cushion control are mounted on the dashboard. When the vehicle is working, The driver shall turn on the warning lights on and keep it flashing. Then turn on the induction lamp and choose the right guiding direction according to road condition.  And only the driver himself can finish all the operation.

The double row vehicle chassis can transport more working staffs conveniently & safely to any spot  it needs.

标注文件222-01

V. More application reference

1561632258174

Snow removal scene


da429b5b5423b04204a33779759ac97

Road construction protection scence
