| Quantity: | |
|---|---|
STANDARD
7.7CBM
18000KG

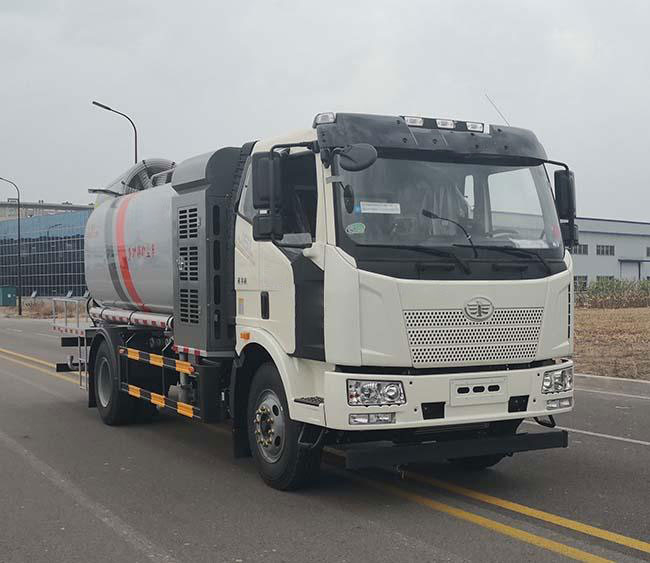

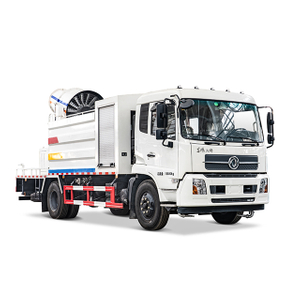

1.This multi-functional dust suppression vehicle is equipped with independent high pressure and low pressure water circuit system, generator unit is adopted to drive high pressure water pumps and fans and other devices. And low pressure water pump takes power from engine through PTO system & gearbox.
1.A Main part of low pressure water circuit system
 Front spray gun of low pressure water ciruit |  Stainless water pump of lower pressure water circuit |  Rear spray of lower pressure water circuit |
1.B Mian parts of high pressure water circuit system

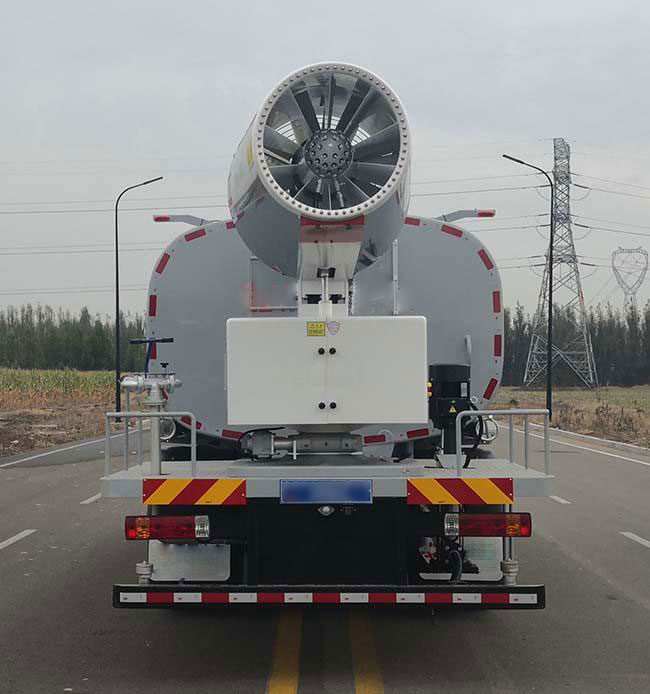

 50kw generator |  Hydraulic station |  Rear fog cannon |

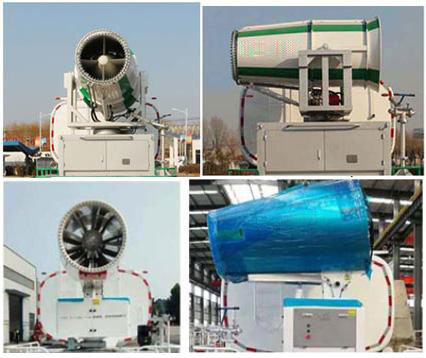

2,Long range sprayer, with artificial intelligence and automatic control adjustment, it can be manual or remote control, very convenient and flexible. The spray can reach a maximum 80m range and cover an area of 20,000 square meters, which can greatly reduce the content of PM2.5 in low altitude. The nozzle of sprayer can be manually adjusted to spray water,
3.Self-priming centrifugal pump is adopted for lower pressure pump so it can pump water into tank itself from water source nearby. The low pressure water system also have been equipped with front flushing & rear sprinkling devices, and it can realize the function of flushing and sprinkling.
4. In case of emergency, the generator units can also used as an emergency generator,the generator unit is equipped with 220V AC voltage 380V AC voltage output socket.
5, The internal wall of the water tank is treated with anticorrosion, also stainless steel can be adopted as inner wall. In this case, it can be used for spraying disinfectant and dust suppressant.
6, The low pressure water level sensor alarm system is installed inside the driver’s cabin, which realized centralized control of water and electricity. And the operation is very convenient and flexible. With a good main-machine interface,the driver can complete all the operation inside the cab.It can reduce the labor of the intensity driver. Also it is more safe and comfortable.
