STANDARD
Diesel

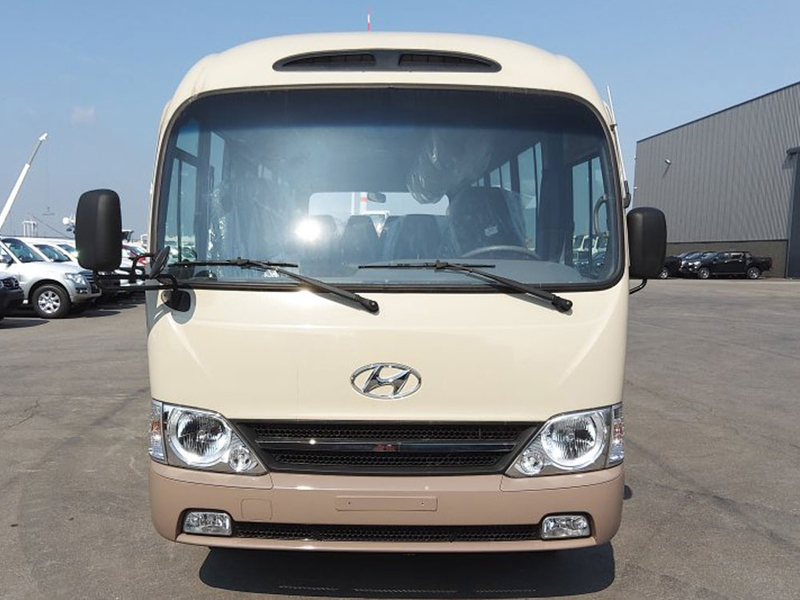

Compared last version coaster, this vehicle has undergone huge changes in appearance: In addition to the square-cornered front face design, the cabin has been increased by 120 mm, and the overall width has been increased by 170 mm, also the length has been increased by 15 mm.

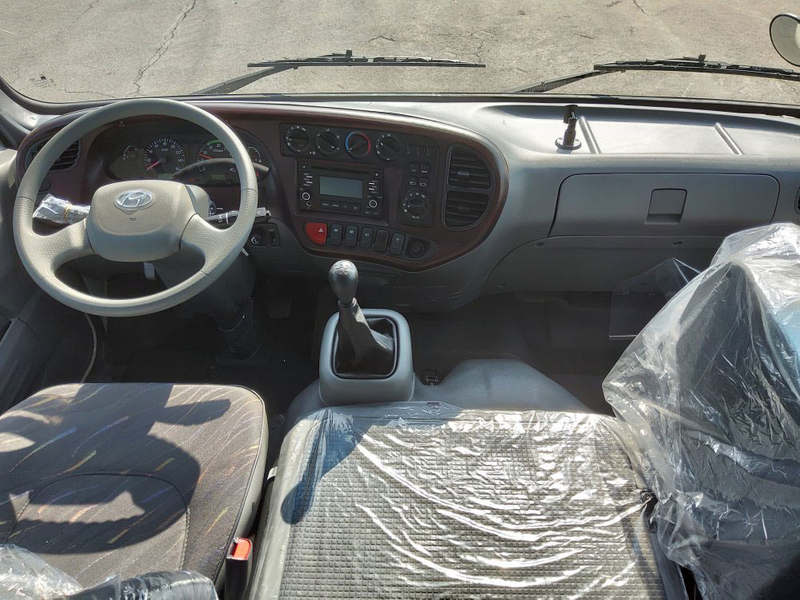

The interior of the vehicle is more plain than the appearance. But the window area has been greatly improved, which improves the window vision compared with previous generation Coaster copy.
As the most concerned part: powertrain, the latest generation of coaster copy model is equipped with Nissan ZD30 engine. This is a big breakthrough than ever, usually most coaster copies only be equipped with domestic engines like yuchai(YC4FA115 series), chaochai (CY4102 sereis)... ...
 NISSAN ZD30 engine Model: ZD3014-3N Type: in line, 4 cylinders, 4 stroke Displacement: 2953 cc Max power: 140 hp / 3600 rpm Max torque: 280 N.m/ 1600 rpm Emission Standard: Euro III |
Features of Nissan ZD30 engine
1, high reliability:
no overhaul within 80,000 km. Excellent cold starting capability
2, Low fuel consumption:
Bosch new electronically controlled high-pressure common rail fuel injection system is adopted; the engine cylinder head, gear chamber cover and oil pan are made of high-strength aluminum alloy, with an overall weight reduction of 65kg, and the fuel consumption is more than 20% lower than that of the traditional diesel engine
3, high power but lower noise.
Gold combination with Fast gearbox
To match with Nissan engine, brand Fast gearbox is adopted to guarantee the smoothness of power output.
 Fast gearbox |  Fast gearbox |
The largest upgrade of this vehicle is safety performance of whole vehicle
First: from perspective of overall vehicle body: stamping body is adopted which has advantage like light weight, good performance, high strength.
 Left without side pannel |  right with side pannel |
Disc brake
This new coaster copy updated its braking system to dual-circuit pneumatic disc brake instead of traditional hydraulic drum brake, which makes the braking effectiveness relatively stronger. Also the brake type
 Features of disc brakes 1： Braking efficiency is more stable than drum brake 2: Good water stability ,only small reduce on braking effectiveness after saoking 3: Smaller size & weight for same braking force output 4: Small thermal expansion in the thickness direction of brake disc , good heat dissipation. |
It continues classic design, but more refined and classy : Simple interior, strong power and outstanding performance. And the most improve is upgraded vehicle safety performance.
