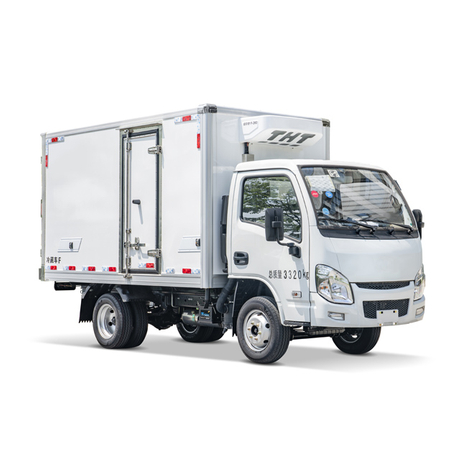

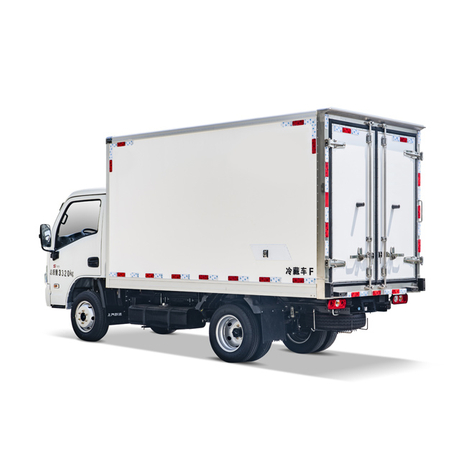

4X2 MAXUS 1.5 Ton Refrigerated Truck
Product Description
I. Rear cargo box is of good insulation performance and high transportation capacity
In addition, 4X2 MAXUS 1.5 tons refrigerated truck is equipped with refrigeration unit and temperature control system, which can adjust the temperature inside the box according to the demand of the goods. This model has a larger box volume, which can load more goods and improve the transportation efficiency. At the same time, the model also has good cross-country performance, can be driven in complex road conditions, to adapt to a variety of transportation needs.
The rear door frame has a flat door frame structure,which is made of 2.5 mm thick, 3 -class stainless steel material. And the rear door opening mechanism is also of stainless steel material; Sealing strip is added around the rear door to strengthen the sealing performance, the door gap adjustment and the optimized mechanism make the opening much more light & easy.
II . Cargo box is of high strength & long serving life
The material of the board surface is available in FRP, stainless steel, aluminum alloy, etc. And the cargo box has the advantages of light weight, high thermal insulation coefficient, strong impact resistance, no leakage, etc., it has good corrosion resistance and aging resistance under the medium such as atmosphere, water, acid and alkali and salt. By optimizing the design, the center of mass is lowered and the effective volume is increased.
III . Light weight design underframe:
The underframe of freezer box is specially designed with high-strength all-aluminum constructure. The curb weight of refrigerated truck with aluminum underframe is 15% less than that with channel-steel underframe. And the loading capacity will be increased to meet the customer's load requirements under the same gross vehicle weight. And this design already obtained a national patent.
In short, 4X2 MAXUS 1.5 tons refrigerated truck is an efficient and reliable transportation tool, which provides an important guarantee for the transportation of refrigerated goods.
Chassis configuration
Chassis Info
| Cab | Type | Single Cabin |
| Tilted | / | |
| Width | 1545mm | |
| No. of Seats | 2 | |
| Engine | Type | D19TCIE10 |
| EMISSION LIM. | EURO IV | |
| Displacement(cc) | 1910 | |
| Max Power(kw/rpm) | 70/3600 | |
| Max Torque(N.m/rpm) | 190/1800~3400 | |
| Transmission | Type | MT78 |
| Speed Rario | 1st：4.746 2nd: 2.591 3rd:1.501 4th：1 5th：0.77 R：4.301 | |
| Final drive ratio | 4.875 | |
| Tire | Type | 185R14LT |
| Dimension (mm) | Overall Size(mm) (L*W*H) | 5185×1735×2060/2105 |
| Wheelbase | 2650 | |
| Rear body size(mm) (L*W*H) | / | |
| Min. Ground Clearance | ≥150 | |
| Front&rear tread | 1316/1223 | |
| Weight (kg) | Kerb Weight/（CVW）（kg） | 1560 |
| G.V.W. （kg） | 2500 | |
| Brake | Serving Brake Type | Hydraulic Brake |
| Parking Brake Type | Central Drum Brake | |
| Exhaust Assistant Brake | / | |
| ABS | ● | |
| Front Disc Brake | ● | |
| A/C | O | |
| Power Steering | ● | |
| Power Window | ● | |
| Central Lock | ● | |
| Remote Control | ● | |
| Safety belt reminding | / | |
| Cruise control+Multifunction steering wheel | / | |
| 7 Inch Touch Screen | / | |
| 10 Inch Touch Screen | / | |
| Wind Deflector | O | |
| self-adjusting brake | O | |
| Reverse Radar | / | |
| Reversing image | / | |
| Voltage | 12V | |
| Fuel Tank Volume | 40L | |
| Post-processing technology route | Common rail High pressure +EGR+双DOC | |
| Optional | ||
| Body Color | Blue | O |
| Yellow | / | |
| Red | / | |
| Front Disc Brake | / | |
| Cruise control+Multifunction steering wheel | / | |
| Wind Deflector | O | |
| A/C | O | |
| self-adjusting brake | O | |
| Strengthen Leaf Spring | O | |
| Top Ventilation | O | |
| Electrothermal rearview mirror | / | |
| Driving automatic latch | - | |
● : Standard ○: Optional /: Not Available
